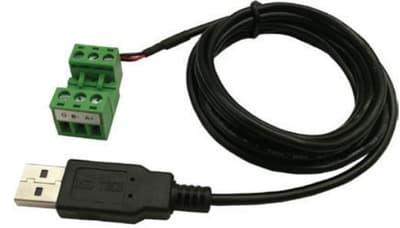

Kayden® USB-RS485 Convertor Cable
Brand: Kayden Instruments
This cable is used to connect a Kayden Classic Flow, Level, Interface Switch to a computer in order to use Kayden’s Remote Control & Monitoring (RCM) Software. The built-in RS485 to USB converter allows you to connect for communication, diagnostic, and monitoring purposes.
Features- FTDI FT232RI… Built-in 15KVESD and TVS overvoltage protection
- built-in 3-pin terminal board
- Allows up to 32 slave devices
- Windows 2000, XP, Vista, Windows 7, 8, 9, 10, and Mac OSX
Pin Out Definitions
- A+: + RS-485
- B-: - RS-485
- GND: Ground (Optional)
