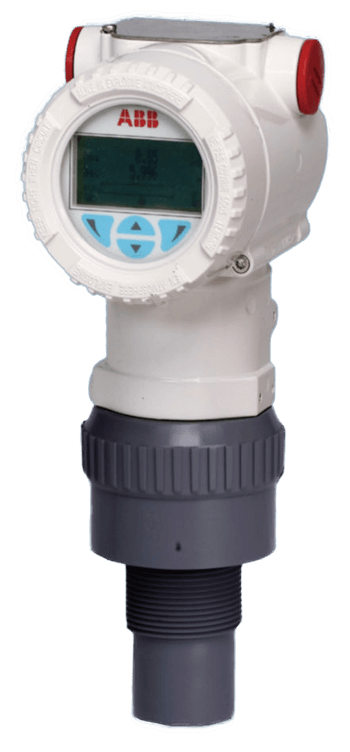

LST300 Compact Ultrasonic Level TransmitterBrand: ABB Group
LST300 represents the future of level measurement.
While using intelligent compact transmitters has always been attractive, certain limitations prevented their use in many applications. LST300 removes those old obstacles.
Whether you have the risk of flooding or corrosive materials in the process, LST300 survive these conditions easily.
With metal at the top and PVDF at the bottom, LST300 is the first compact ultrasonic to be resistant to corrosion on the entire instrument. Ingress protection approvals up to IP68 (optional) ensure the entire device can survive flooding.
LST300 combines the most advanced functions found on any ultrasonic in any class, in a compact form.
Installation becomes easy thanks to the graphic echo display and advanced diagnostics. The false echo filtering algorithm combined with the best‑in‑class beam angle ensures easy installation in narrow areas with many obstructions.
With through the glass technology, you never have to open the cover to configure the instrument. It is hard to believe that all this functionality is available on a device powered by only two‑wire loop power.Features
- Maintenance free, non-contact continuous level sensor
- 2-wire instrument with HART digital communication
- Up to 10 m measurement range
- Wide temperature range of -40° to 85° C
- Accuracy of ±2 mm or 0.2 % of full span (the larger one)
- Beam angle as low as 5˚ with false echo filtering for narrow spaces
- Easy installation with graphic echo display, advanced diagnostic and easy setup menu
- Unique GAP technology ensures the best performance under any condition
- IP66/67 and NEMA 4X (can submerge to 1 m depth for 30 minutes)
- ATEX, IEC & FM Intrinsic safe and non sparking approved
- Through the Glass (TTG) buttons, standard push buttons or without HMI interface
- 6 m (20 ft.) or 10 m (32 ft.) measurement range
- FM, ATEX, IECEx or NEPSI approved, intrinsically safe or non‑sparking
- Standard, extendable or floor mounted brackets available for easy installation
- Flange mounting options
Certifications & Approvals
- -40° to 85° C (-4° to 185° F)
- Up to 100 % Relative Humidity
- Measurement Functional from -4 to 44 psi (-0.25 to 3.00 bar)
- C10 Sensor: 0.35 to 10.00 m (14 in to 32 ft)
- C06 Sensor: 0.25 to 6.00 m (10 IN to 20 ft)
Beam Angle (at –3 dB, Full Angle)
- C06 Sensor: 7°
- C10 Sensor: 5°
- ± 2 mm (0.08 in) or 0.20 % of Full Span (The Larger of the Two)
- ± 0.2 % of Measurement Range
- Plastic Parts: PVDF
- Metal Parts: Aluminum Alloy
- 16-42 Vdc
- FOUNDATION Fieldbus
- 127 mm (0.5 in) Threaded Bore for Cable Gland, Directly on Housing
- M20 x 1.5 Threaded Bore for Cable Gland, Directly on Housing
Dimensions (L x W x H)
- 136 x 100 x 266 mm (5.3” x 3.9” x 10.5”)
- 2 kg (4.4 lbs)
- Water and waste water
- Chemical industry
- Power industry
- Mining & metals industry
- Pulp & paper industry
